GridfinityTrayLayout

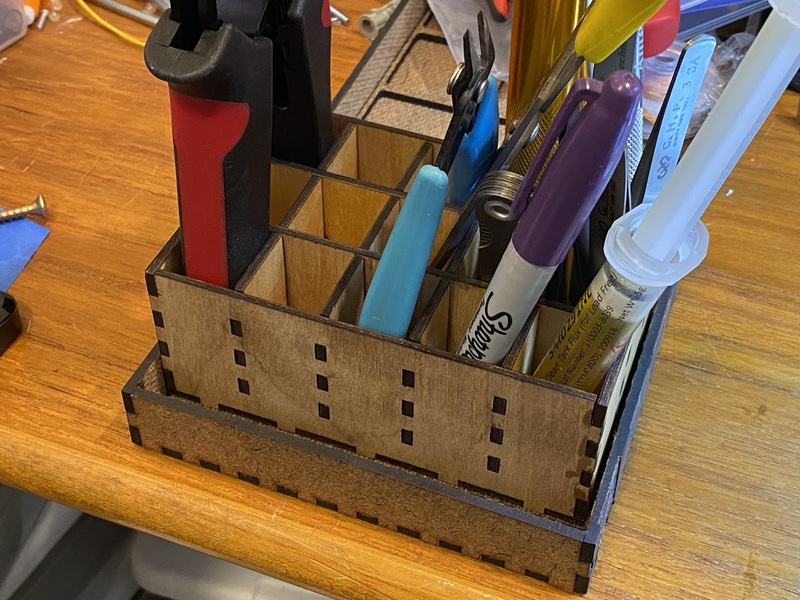

A Gridfinity Tray Generator based on TrayLayout

Configuración de Uniones

style

estilo de los dedos

surroundingspaces

espacio al inicio y final en múltiplos de espacios normales

bottom_lip

altura de los labios inferiores que sobresalen (múltiplos del grosor) ¡Solo FingerHoleEdge!

edge_width

espacio debajo de agujeros del borde (múltiplos del grosor)

extra_length

material extra para lijar marcas de quemado (múltiplos del grosor)

finger

ancho de los dedos (múltiplos del grosor)

holgura

espacio extra para permitir movimiento de dedos (múltiplos del grosor)

space

espacio entre dedos (múltiplos del grosor)

width

ancho de los agujeros para dedos (múltiplos del grosor)

Configuración de Tapa

handle

tipo de manija

style

tipo de tapa a crear

handle_height

altura de la manija en múltiplos del grosor (si aplica)

height

altura del borde en múltiplos del grosor (si aplica)

holgura

holgura al deslizar la tapa en múltiplos del grosor (si aplica)

GridfinityTrayLayout Settings

alto

height in mm or add 'u' at the end for Gridfinity units

inner height of inner walls in mm (leave to zero for same as outer walls with optional reduction for stacking)

number of gridfinity grids in X direction

number of gridfinity grids in Y direction

countx

split x into this many grid sections. 0 means same as --nx

county

split y into this many grid sections. 0 means same as --ny

margin

Leave this much total margin on the outside, in mm

stacking

support gridfinity compatible stacking

gen_pads

generate pads to be used on the bottom of the box

pad_radius

The corner radius for each grid opening. Typical is 0.8,

cut_pads_mag_diameter

if pads are cut add holes for magnets. Typical is 6.5, zero to disable,

cut_pads_mag_offset

if magnet hole offset from pitch corners. Typical is 7.75.

base_thickness

the thickness of base the box will sit upon. 0 to use the material thickness, 4.65 for a standard Gridfinity 3D printed base

layout

You can hand edit this before generating

Configuración General

grosor

thickness of the material (in mm) 🛈

formato

format of resulting file 🛈

pestañas

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

codigo_qr

Agregar código QR con enlace o línea de comandos a la salida generada

depuración

print surrounding boxes for some structures 🛈

etiquetas

etiquetar las partes (donde esté disponible)

referencia

print reference rectangle with given length (in mm)(zero to disable) 🛈

esquinas_interiores

style for inner corners 🛈

quemado

burn correction (in mm)(bigger values for tighter fit) 🛈

espaciado

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

Recibe una cotización lo más pronto posible sin salir de la página

Solicitar Cotización Te contactaremos en menos de 24 horas con una cotización exacta para el modelo actual

Número de Teléfono Mínimo 10 dígitos

This is a general purpose gridfinity tray generator. You can create somewhat arbitrarily shaped trays, or just do nothing for simple grid shaped trays.

The dimensions are automatically calculated to fit perfectly into a gridfinity grid (like the GridfinityBase, or any other Gridfinity based base).

Edit the layout text graphics to adjust your tray. You can replace the hyphens and vertical bars representing the walls with a space character to remove the walls. You can replace the space characters representing the floor by a "X" to remove the floor for this compartment.
