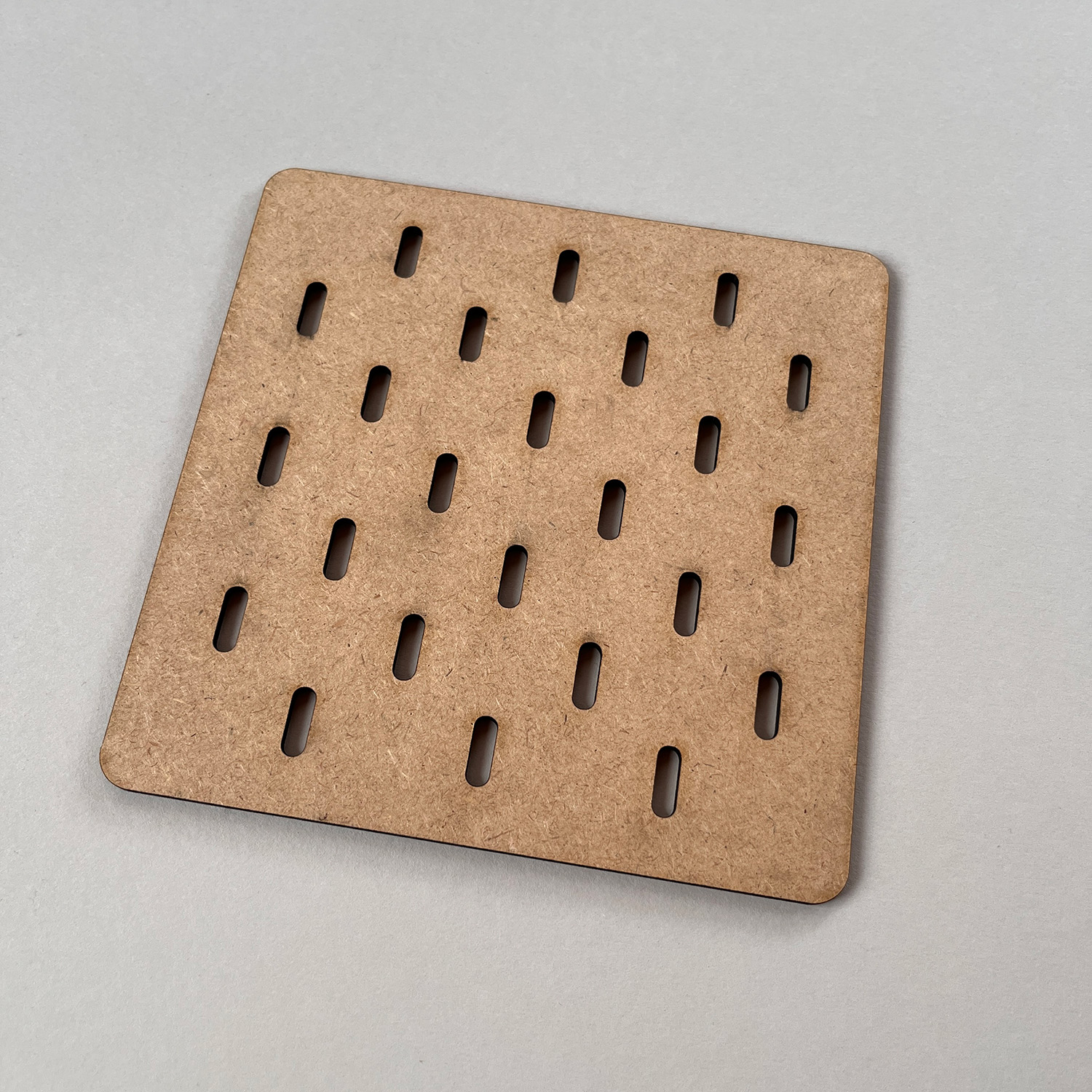

Customizable Ikea like pegboard

SkadisBoard Settings

columns

Number of holes left to right counting both even and odd rows

rows

Number of rows of holes top to bottom

Configuración General

grosor

thickness of the material (in mm) 🛈

formato

format of resulting file 🛈

pestañas

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

codigo_qr

Agregar código QR con enlace o línea de comandos a la salida generada

depuración

print surrounding boxes for some structures 🛈

etiquetas

etiquetar las partes (donde esté disponible)

referencia

print reference rectangle with given length (in mm)(zero to disable) 🛈

esquinas_interiores

style for inner corners 🛈

quemado

burn correction (in mm)(bigger values for tighter fit) 🛈

espaciado

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

Recibe una cotización lo más pronto posible sin salir de la página

Solicitar Cotización Te contactaremos en menos de 24 horas con una cotización exacta para el modelo actual

Número de Teléfono Mínimo 10 dígitos

Best cut from 5mm material to match the original. Use the included washers to mount. The board needs space towards the wall for hooks to go into.

You can use boxes and holders from the "WallMounted" group with "skadis" as "walltype". Note that these generators do not have any support to pick the right width(s). Inner distance between slots are 35 + n * 40 mm. It is recommended to cut the acceessories from 4 mm material. Then 36 + n * 40 mm should be used for inner widths. Deselect "outside" where available to be able to deal with inner measurements.
