WallStairs

Volver al menú Corte láser 22 centavos el minuto WhatsApp Vista Previa

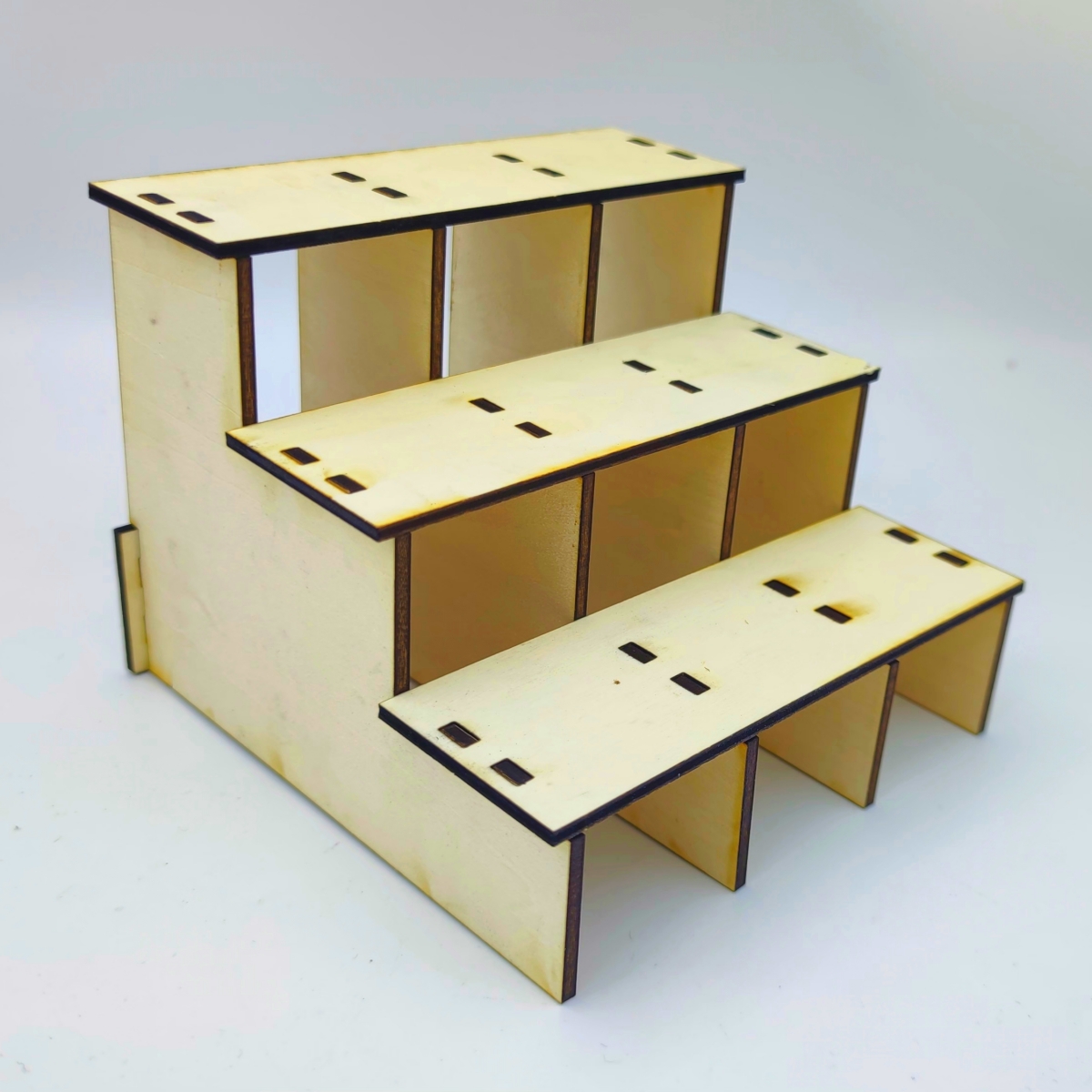

Platforms in different heights e.g. for screw drivers

Configuración de Uniones

style

estilo de los dedos

surroundingspaces

espacio al inicio y final en múltiplos de espacios normales

bottom_lip

altura de los labios inferiores que sobresalen (múltiplos del grosor) ¡Solo FingerHoleEdge!

edge_width

espacio debajo de agujeros del borde (múltiplos del grosor)

extra_length

material extra para lijar marcas de quemado (múltiplos del grosor)

finger

ancho de los dedos (múltiplos del grosor)

holgura

espacio extra para permitir movimiento de dedos (múltiplos del grosor)

space

espacio entre dedos (múltiplos del grosor)

width

ancho de los agujeros para dedos (múltiplos del grosor)

Settings for plain WallEdges

edge_width

space below holes of FingerHoleEdge (multiples of thickness)

Settings for SlatWallEdges

bottom_hook

"spring", "stud" or "none"

hook_depth

horizontal width of the hook

hook_distance

horizontal space to the hook

hook_height

height of the horizontal bar of the hook

hook_overall_height

height of the hook top to bottom

pitch

vertical spacing of slots middle to middle (in mm)

edge_width

space below holes of FingerHoleEdge (multiples of thickness)

hook_extra_height

space surrounding connectors (multiples of thickness)

Settings for DinRailEdges

bottom

"stud" or "none"

depth

horizontal width of the hook

edge_width

space below holes of FingerHoleEdge (multiples of thickness)

Settings for FrenchCleatEdges

angle

angle of the cut (0 for horizontal)

bottom

"stud" to brace against the wall, "hook" for attaching to a second cleat or "none" for just straight

depth

horizontal width of the hook in mm

espaciado

distance of the cleats in mm (for bottom hook)

edge_width

space below holes of FingerHoleEdge (multiples of thickness)

Settings for SkadisEdges

board_thickness

Thickness of the Skandis board

style

How to hook into the wall

edge_width

WallStairs Settings

walltype

Type of wall system to attach to

sections left to right in mm 🛈

sections back to front in mm 🛈

sections bottom to top in mm 🛈

braceheight

height of the brace at the bottom back (in mm). Zero for none

Configuración General

grosor

thickness of the material (in mm) 🛈

formato

format of resulting file 🛈

pestañas

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

codigo_qr

Agregar código QR con enlace o línea de comandos a la salida generada

depuración

print surrounding boxes for some structures 🛈

etiquetas

etiquetar las partes (donde esté disponible)

referencia

print reference rectangle with given length (in mm)(zero to disable) 🛈

esquinas_interiores

style for inner corners 🛈

quemado

burn correction (in mm)(bigger values for tighter fit) 🛈

espaciado

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

Recibe una cotización lo más pronto posible sin salir de la página

Solicitar Cotización Te contactaremos en menos de 24 horas con una cotización exacta para el modelo actual

Número de Teléfono Mínimo 10 dígitos

You are supposed to add holes or slots to the stair tops yourself using Inkscape or another vector drawing or CAD program.

sh gives height of the stairs from front to back. Note that the overall width and height is bigger than the nominal values as walls and the protrusions are not included in the measurements.
